Access Control Features

The system is modular and allows for scaling up – adding more rooms and users as needed. A single ID medium is used across all access points, ensuring ease of use and a clear system overview.

Contact us

A unified access control system provides comprehensive, centralized management of entry to company premises – from the reception area to high-security zones. Each user can be assigned a single identification medium or a combination of different ones. The system enables access restriction and monitoring, maintaining accurate records of all entries and entry attempts – who entered, where, and when.

KADRIS 4: Access Control KADRIS 4: Access Control

Room occupancy (roll call) records are updated based on registrations at Access Control readers or Time and Attendance terminals. For the functionality to operate, a room must be defined, and entry and exit readers assigned. Registration at an entry reader adds a person to the list of those present, while registration at an exit reader removes them from the list. The functionality is used to ensure occupational health and safety and for evacuation purposes.

KADRIS 4: Access Control KADRIS 4: Access Control

Access Control is part of the Time and Attendance system and is closely linked to time tracking. Users employ the same identification medium for both systems, which means user data and access rights are shared, reducing duplicate work and minimizing the risk of errors. In specific cases, the Time and Attendance terminal can also be used for door access.

The visitor announcement and reception system for company premises is part of a comprehensive security system. The process is digitally supported with two modules – the online and/or internal visit announcement and the visitor reception at the front desk.

Employees can announce guests themselves and reserve meeting rooms, or direct them to the company’s website, which features an integrated online form for entering visit details that are automatically transferred to the system. The system also provides an overview of all announced visits and guests.

The receptionist registers visitors at the front desk, issues ID cards for door access on the day of the visit, and manages their consent forms. When a visitor leaves, the receptionist closes the visit record, ensuring that the list of currently present visitors is always up to date.

Regular security rounds are essential for preventing security risks and reducing unnecessary costs in business premises, such as lights left on, open windows, or the risk of burglary. To effectively monitor and supervise the work of security staff, the KADRIS 4 Access Control patrol system is used, allowing security officers to record their patrols via the dedicated KADRIS 4 Security mobile app. Patrols are logged at terminals installed at designated checkpoints, while the control center gains a comprehensive overview of all completed patrols. This system ensures a higher level of security and greater efficiency in managing security tasks in the business environment.

Using lockers with ID cards is simple for employees, while administrators have an overview of locker occupancy. Access Control allows alarms to be triggered in case of a break-in and provides event and status reports, improving overall supervision. In addition, it enables companies to optimize locker maintenance costs.

Using ID cards to open key lockers enables control and monitoring of access. This solution is suitable for all environments where electronic locking is not required or not economically viable.

Logical Access Control using smart ID media and passwords ensures the security of information systems and computers. The system requires appropriate ID media, readers, software, and public key infrastructure (PKI). For the highest level of security, it is recommended to combine a physical ID medium, a unified media database, and a Single Sign-on (SSO) system. Users must handle their ID cards with care, as they cannot use their computer without them, and the system automatically logs them out when leaving the office. To ensure information system security, sharing of cards and passwords is strictly prohibited.

Access Control Hardware and ID media

The system enables easy door unlocking by holding an ID card or smartphone close to a reader connected to the database via a control unit. In-house software development, production of long-lasting components, and the SIST EN 60839-11-1 security certificate ensure stable supply, servicing, regular upgrades, and the highest level of security.

[ AREAS OF APPLICATION ] KADRIS 4: Access Control

Monitor entrances, record visits and room occupancy, and manage logical access control to information systems. The system can also be used for security patrols, as well as for opening key lockers and wardrobes.

[ OPERATING PRINCIPLE ] KADRIS 4: Access Control

Doors and passages can be opened only after correct user identification, confirming the user’s access rights. The reader retrieves data from the identification medium and sends it to the control unit, which verifies whether the user is authorized to enter. All events are recorded in the database that manages the entire system.

ID media readers and control unit

Readers in the Access Control system enable contactless reading of ID media, allowing fast and secure user identification. The control unit communicates with the database and uses the ID media data to operate the latch mechanisms. The most advanced hardware version, compliant with the SIST EN 60839-11-1:2013 standard and grade 4 requirements, provides four hours of autonomous operation, while the grade 3 version provides two hours. For grade 2, an uninterruptible power supply is not required.

KADRIS 4: Access Control

CMX3 and CMX3 Reader with Keypad

The CMX3 and CMX3 Reader with Keypad combine a modern “balanced flat” design with advanced RGB LED signalling, giving users a clear and intuitive indication of access status. They enable secure and simple door opening using ID cards, key tags, or the KADRIS 4 Mobile app. A keypad-equipped version is also available for PIN entry, providing an additional layer of security. They are suitable for use in business, industrial, and public buildings.

The CMX3 model enhances the standard functionality with the ability to read bank payment cards. This enables controlled 24/7 access to secured ATM areas without issuing additional identification media and without requiring extra applications.



KADRIS 4: RIS - Kontrola dostopa    KADRIS 4: RIS - Kontrola dostopa     KADRIS 4: RIS - Kontrola dostopa    KADRIS 4: RIS - Kontrola dostopa

Learn more
KADRIS 4: Access Control

CMX5 and CMX5 Reader with Keypad

The CMX5 and CMX5 Reader with Keypad combine a modern “balanced flat” design with advanced RGB LED signalling, providing users with a clear and intuitive indication of access status. They enable secure and convenient door opening using ID cards, key tags, or the KADRIS 4 Mobile app. A keypad-equipped version is also available for PIN entry, providing an additional level of security in access control. They are suitable for use in business, industrial, and public buildings.



KADRIS 4: Access Control     KADRIS 4: Access Control      KADRIS 4: Access Control

Learn more
KADRIS 4: Access Control

VT-500 control unit

The control unit can operate autonomously for up to four hours, depending on the selected security grade under the SIST EN 60839-11-1:2013 and the built-in uninterruptible power supply.

KADRIS 4: Access Control    KADRIS 4: Access Control   KADRIS 4: Access Control   KADRIS 4: Access Control

KADRIS 4: Access Control

SIST EN 60839-11-1:2013 certificate

Since 2022, the Access Control system has been certified according to the international security standard SIST EN 60839-11-1:2013 (grades 2, 3, and 4). The certificate covers the KADRIS 4 software and hardware: the VT-500 control unit, and the CMX3, CM03/TP, and CM03/TP/SF ID media readers.

KADRIS 4: Access Control   KADRIS 4: Access Control    KADRIS 4: Access Control

Identification media

ID media record events on the readers contactlessly and enable access to premises. Cards and key tags use NXP’s MIFARE technology in accordance with the ISO 14443 standard and are available in both basic and advanced versions. Identification via smartphones uses NFC technology. The system is also compatible with older technologies such as remote controls, UHF, and older types of ID cards, and it supports combined identification with a PIN code.

KADRIS 4: Access Control

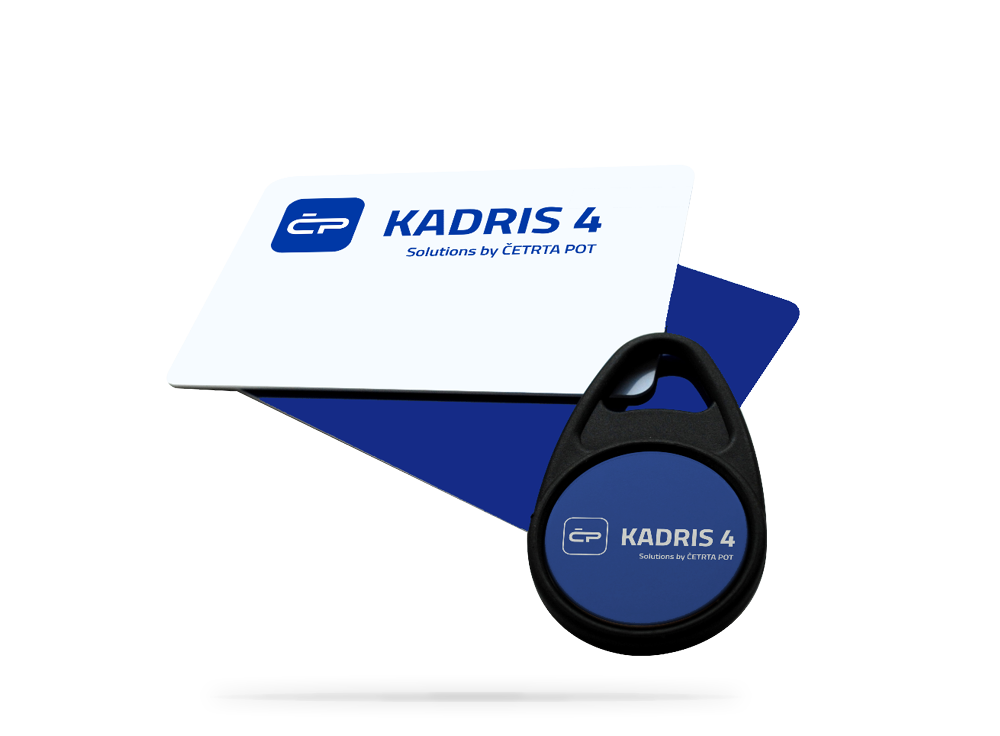

KADRIS 4 ID cards and key tags

KADRIS 4 smart contactless ID cards and key tags are based on NXP’s MIFARE technology. They are available in a basic (K4IDF) and an advanced (K4IDX) option, allowing clients to adapt the solution to specific security requirements. Both are suitable for advanced Time and Attendance and Access Control systems.

The advanced option allows users to use the same card for secure entry into the building and to log in to the company’s information system. It provides full integration of physical and logical access control on a single identification medium.

Learn more
KADRIS 4: Access Control

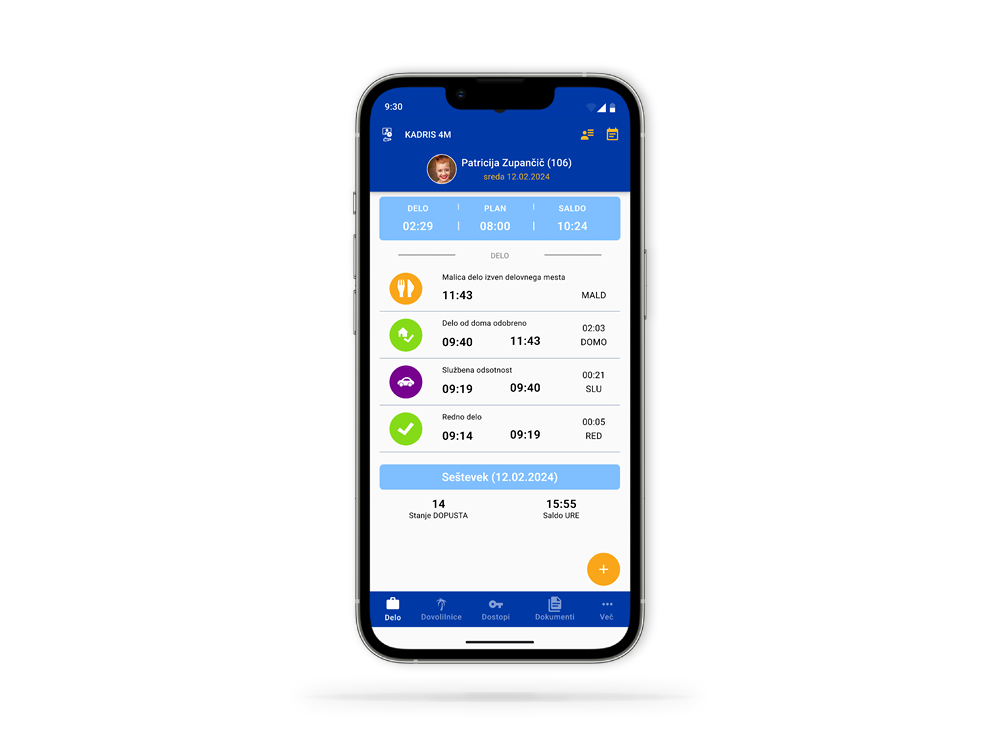

KADRIS 4 Mobile app

Mobile identification on CMX3 and CMX5 readers for door access within the Access Control system.

More

Advantages of KADRIS 4 Access Control

Contactless identification for access to business premises and rooms.

In-house development and production of components – a stable supply chain.

A smartphone as an ID medium for door access, functioning even without internet or mobile connectivity.

Certified to the highest security levels – SIST EN 60839-11-1:2013, grades 3 and 4.

An integral part of the unified KADRIS 4 platform for payroll, scheduling and time tracking, and HR management.

System scalability tailored to the client’s needs. Compatibility with older versions and agile adoption of new technologies.

Certified integration with the fire protection system and other systems (e.g. SAP ERP).
